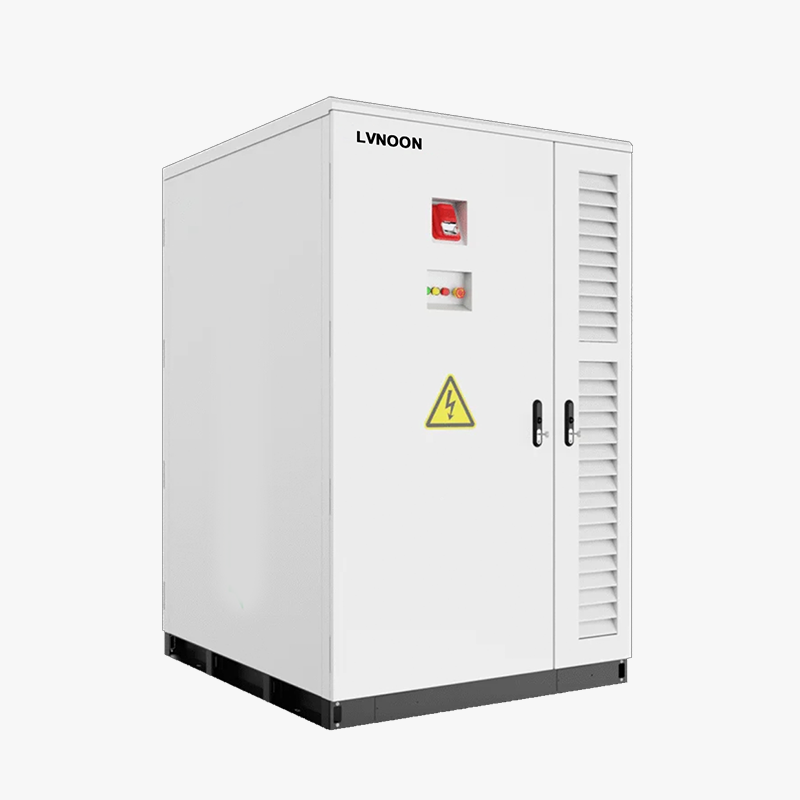

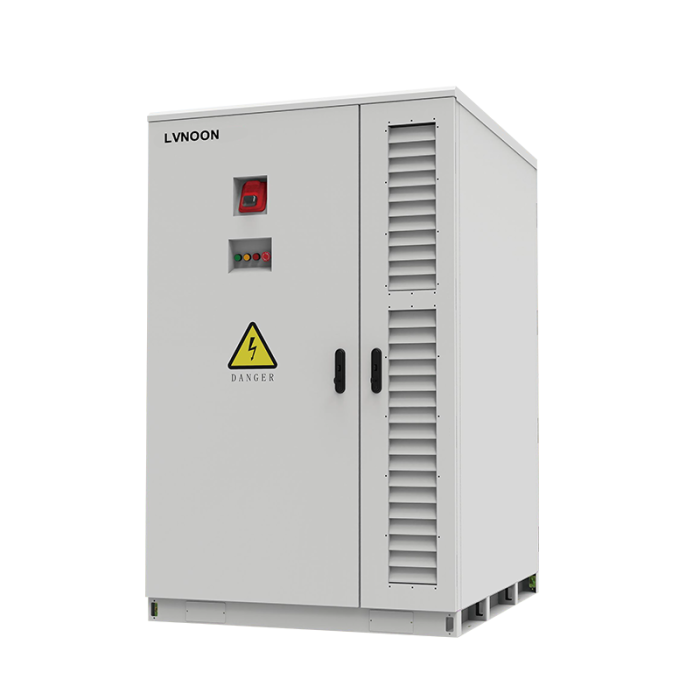

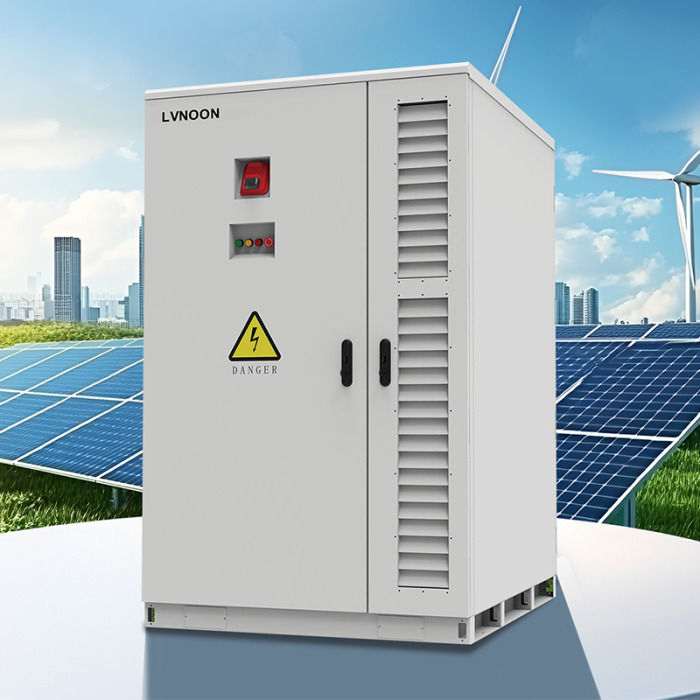

261KWH Intelligent Liquid BESS
Features
- Super powerful 261KWh large capacity.
- A+ grade 314Ah large capacity cells, with an 8000cycleslong lifespan, ensuring a durable and stable power supply.
- Intelligent liquid-cooling system enhanced thermal control for long-term performance.
- Adopt Integrated BMS, PCS, and EMS technology to ensure efficient and reliable power supply.
- Built-in fire control, temperature regulation, and seamless on-grid/off-grid switching, greatly enhance safety performance.
- Optical storage and charging fusion applications.
- Transformer capacity management.
- Operating temperature -25℃ – 55℃, IP54 high protection level, capable of withstanding extreme temperature variations.
| Model | LV261L125 |
| Battery Data | |
| Nominal energy | 261kWh |
| Nominal voltage | 832V |
| Battery Model | 314Ah |
| Battery Chemistry | LiFePO4 |
| Cycle Life | ≥8000 cycles(@25°C, 0.5P/0.5P) |
| Cell Specification | 3.2V 314Ah |
| Battery Pack Energy | 52.2kWh |
| String Configuration | 1P260S |
| Number Of Racks | 1 |
| Operating Voltage | 728V – 949V |
| Rated Charging Power | 0.5P |
| Rated Discharging Power | 0.5P |
| Safety | |
| Fire suppression system | Gas – Suppression Fire Extinguishing System |
| Inverter Data | |
| Rated Power | 125kW |
| Compatible with 95% mainstream inverter brands | |
| General | |
| Dimensions (W×D×H) | 1300×1550×2090mm |
| Weight | ≤2600kg |
| IP rating | IP54 |
| Cooling method | Liquid cooling(battery) |
| Operating Temperature | -25℃~＋55℃ |
| Storage Temperature | -30℃~＋60℃ |
| Relative Humidity | 15% – 90% (Non – condensing) |
| Operating Altitude | ≤3000m |
| Communication Interfaces | CAN/RS485/Dry contact |
| Compliance | IEC/EN 62619, IEC/EN 61000, UN38.3, MSDS |
Compatible Lists of Inverter Brands
