1A 2A Active Balance Inverter BMS 8S to 16S home Energy BMS Smart active BMS
Function：BT/RS232/RS485/CAN/Heat
BMS type：Inverter BMS
Balancing current：2A
Battery string：8S-16S
Charge/Discharge:150A/200A/300A
Battery Type:Li-ion/Lifepo4/LTO
LVNOON Inverter BMS 8S to 16S Smart active BMS 100A 150A 200A LI-ion LIfepo4 Home Energy BMS 1A 2A Active Balance
Main Feature
Active Balance 1A/2A
With 10A limited parallel connection module
Support PC software upgrade
Short circuit protection
Support li-ion/NCM/LFP/Lidepo4/LTO
Support smartphone APP operation
Charge/discharge current available 100A/150A/200A
Operation，alarm，power indication etc.
Characteristic
Common port/4 NTC sensor/heating optional
With 10A limited parallel connection module
3 channel communication 2 RS485 and 1 CAN
1000 history log record
Intelligent communication
Freely and safety expand battery capacity
High efficiency active balance
Reverse polarity protection
Active Balance Whether it is charging,discharging or static status,improve battery efficiency by 95%
Support Single voltage range 1V-5V.equalization accuracy +/-5mV
All in Protection
Balanced protection
over charge protection
over discharge protection
over current protection
short circuit protection
temperature protection
PCB protection
Disconnection protection
Real-Time Active Energy Transfer Equalization with Super Capacitor as the medium
With 1A/2A Balanced Current and Continuous 100A，150A to 200A Charge/Discharge Current
Ensure battery consistency，improve battery cruising range，and delay battery aging，improving safety and avoid risk
Support Smartphone APP，PC Host & LCD Display
Support Parallel Connection，fit for 8-16 Strings Battery Packs
Widely used on
Home energy storage
Communication base
Stations
Buiding energy storage
Industrail equipment backup power
Farm
Special Designed for home energy storage system
Wiring Diagram
More function，more powerful
Support more interfaces
Compatible with most Inverter brands

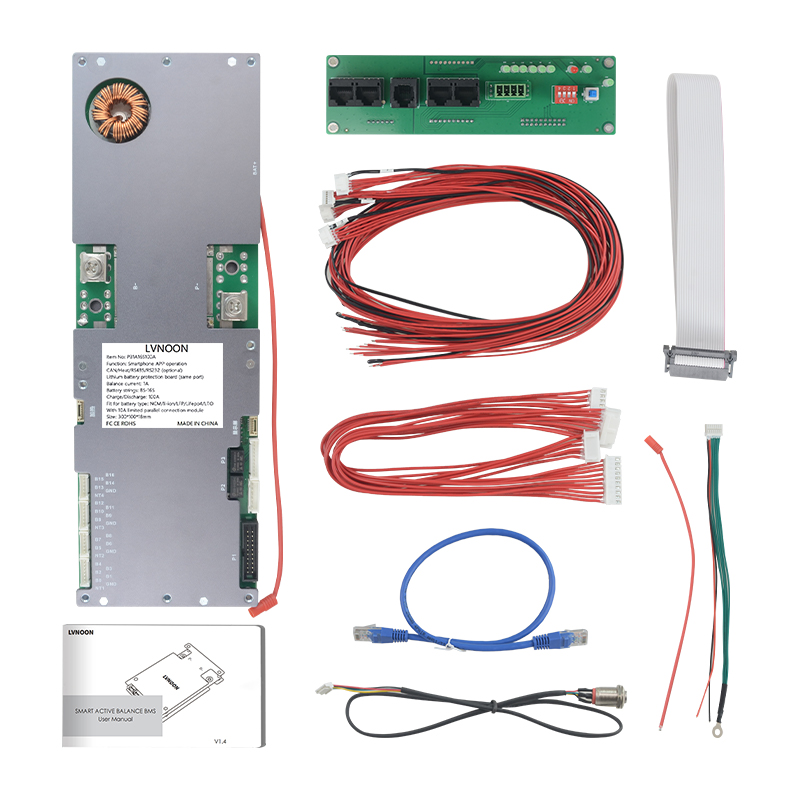

Packing List
Active BMS protection board
Interface board
Balance wire
Switch
Adapter cable
RJ45 Cable
Adapter cable
B+wire
Heat wire
User manual
Technical Index PB1A16S100A PB1A16S150A PB1A16S200A PB2A16S150A PB2A16S200A
| LVNOON Smart Active Inverter BMS PB1A2A series Product Specifications | |||||
| Number of Battery Strings (Li-ion) | 7~16S | 7~16S | 7~16S | 7~16S | 7~16S |
| Number of Battery Strings (Lifepo4) | 8~16S | 8~16S | 8~16S | 8~16S | 8~16S |
| Number of Battery Strings (LTO) | 12-16S | 12-16S | 12-16S | 12-16S | 12-16S |
| Balance Method | Active Balance(Full State On) | ||||
| Balance Current | 1A | 1A | 1A | 2A | 2A |
| Conductive Resistance in Main Circuit | 1.00mΩ | 0.65mΩ | 0.47mΩ | 0.65mΩ | 0.47mΩ |
| Continuous Discharge Current | 100A | 150A | 200A | 150A | 200A |
| Continuous Charge Current | 100A | 150A | 200A | 150A | 200A |
| Maximum Discharge Current (MAX 2 min) | 200A | 300A | 350A | 300A | 350A |
| Over Charge Protection Current (Adjustable) | 10A-100A(Adjustable) | 10A-150A(Adjustable) | 10A-200A(Adjustable) | 10A-150A(Adjustable) | 10A-200A(Adjustable) |
| Other interfaces (Default) | RS458/CAN/RS232 | ||||
| Display interfaces | Yes | ||||
| Size/mm | 300*100*18mm | ||||
| Wiring Output | Common Port | ||||
| Single Cell Voltage Range | 1-5V | ||||
| Voltage Acquistion Accuracy | ±5mV | ||||
| Over Charge Protection Voltage | 1.2-4.35V Adjustable | ||||
| Over Charge Relese Voltage | 1.2-4.35V Adjustable | ||||
| Over Current Detect Delay | 2-120S Adjustable | ||||
| Over Discharge Protection Voltage | 1.2-4.35V Adjustable | ||||
| Over Discharge Relese Voltage | 1.2-4.35V Adjustable | ||||
| Quantity of Temperature Detection | 4 | ||||
| India standard | Support AIS-156 standard | ||||
| Temp Protection | Yes | ||||
| Short Circuit protection | Yes | ||||
| Coulometer | Yes | ||||
| Upgrade | Yes | ||||
| Operation, alarm, power indication | Yes | ||||
| App Function | Fit for Android/IOS/Harmony smartphone | ||||
| Parallel charging current limiting | 10A | ||||
| DIP switch NO. | 4 | ||||
| Dry contact | 2 groups | ||||
