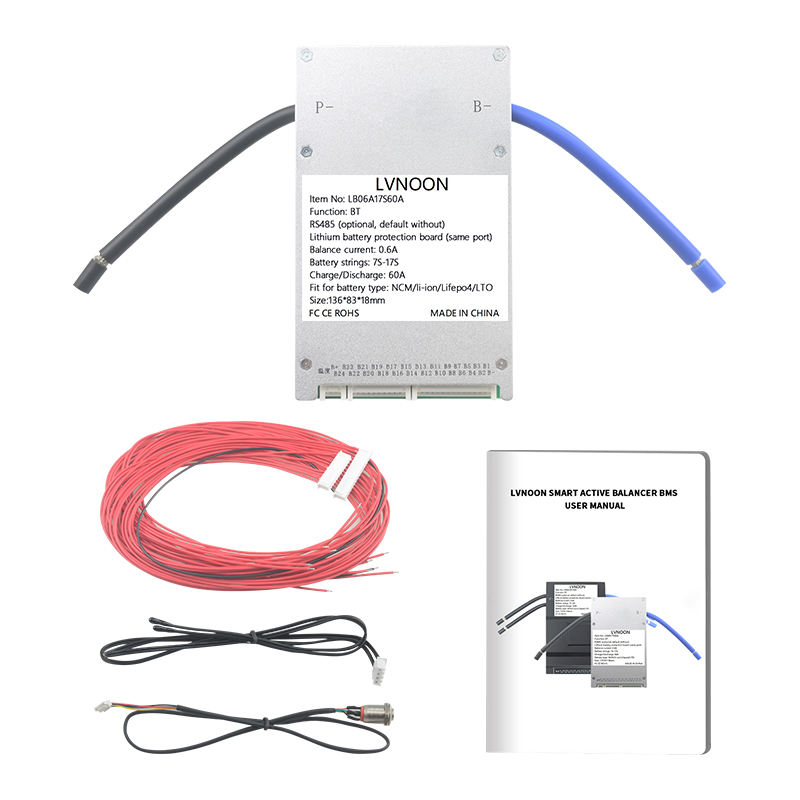

| LVNOON SMART ACTIVE BMS LB06A series Product Specifications | |||||||
| Technical Index | LB06A17S60A | LB06A17S80A | LB06A20S60A | LB06A20S80A | LB06A20S100A | LB06A20S120A | LB06A20S150A |
| Number of Battery Strings (Lifepo4) | 8S-17S | 8S-17S | 8S-20S | 8S-20S | 8S-20S | 8S-20S | 8S-20S |
| Number of Battery Strings (LTO) | 12S-17S | 12S-17S | 12S-20S | 12S-20S | 12S-20S | 12S-20S | 12S-20S |
| Balance Method | Active Balance (Full State On) | ||||||
| Balance Current | 0.6A | 0.6A | 0.6A | 0.6A | 0.6A | 0.6A | 0.6A |
| Conductive Resistance in Main Circuit | 1.53mΩ | 1.2mΩ | 1.53mΩ | 1.2mΩ | 1mΩ | 1mΩ | 0.65mΩ |
| Continuous Discharge Current | 60A | 80A | 60A | 80A | 100A | 120A | 150A |
| Continuous Charge Current | 60A | 80A | 60A | 80A | 100A | 120A | 150A |
| Maximum Discharge Current (MAX 2 min) | 100A | 150A | 100A | 150A | 200A | 250A | 300A |
| Over Charge Protection Current (Adjustable) | 10-60A | 10-80A | 10-60A | 10-80A | 10-100A | 10-120A | 10-150A |
| Other interfaces (Default) | RS485 | RS485 | RS485 | RS485 | RS485 | RS485 | RS485 |
| Other interfaces (need customized) | CAN BUS/HEAT | CAN BUS/HEAT | CAN BUS/HEAT | CAN BUS/HEAT | CAN BUS/HEAT | CAN BUS/HEAT | CAN BUS/HEAT |
| Size/mm | 136*83*18mm | 162*102*20mm | |||||
| Wiring Output | Common Port | ||||||
| Single Cell Voltage Range | 1-5V | ||||||
| Voltage Acquistion Accuracy | ±5mV | ||||||
| Over Charge Protection Voltage | 1.2-4.35V Adjustable | ||||||
| Over Charge Relese Voltage | 1.2-4.35V Adjustable | ||||||
| Over Current Detect Delay | 2-120S Adjustable | ||||||
| Over Discharge Protection Voltage | 1.2-4.35V Adjustable | ||||||
| Over Discharge Relese Voltage | 1.2-4.35V Adjustable | ||||||
| Quantity of Temperature Detection | 4PCS | ||||||
| Temp Protection | Yes | ||||||
| Short Circuit protection | Yes | ||||||
| Coulomb Counter | Yes | ||||||
| App Function | Support for Android/IOS smartphone | ||||||
| LVNOON SMART ACTIVE BMS LB06A series Product Specifications | |||||
| Technical Index | LB06A24S60A | LB06A24S80A | LB06A24S100A | LB06A24S120A | LB06A24S150A |
| Number of Battery Strings (Li-ion) | 7S-24S | 7S-24S | 7S-24S | 7S-24S | 7S-24S |
| Number of Battery Strings (Lifepo4) | 8S-24S | 8S-24S | 8S-24S | 8S-24S | 8S-24S |
| Number of Battery Strings (LTO) | 12S-24S | 12S-24S | 12S-24S | 12S-24S | 12S-24S |
| Balance Method | Active Balance (Full State On) | ||||
| Balance Current | 0.6A | 0.6A | 0.6A | 0.6A | 0.6A |
| Conductive Resistance in Main Circuit | 1.53mΩ | 1.2mΩ | 1.53mΩ | 1.2mΩ | 1mΩ |
| Continuous Discharge Current | 60A | 80A | 60A | 80A | 100A |
| Continuous Charge Current | 60A | 80A | 60A | 80A | 100A |
| Maximum Discharge Current (MAX 2 min) | 100A | 150A | 100A | 150A | 200A |
| Over Charge Protection Current (Adjustable) | 10-60A | 10-80A | 10-60A | 10-80A | 10-100A |
| Other interfaces (Default) | RS485 | RS485 | RS485 | RS485 | RS485 |
| Other interfaces (need customized) | CAN BUS/HEAT | CAN BUS/HEAT | CAN BUS/HEAT | CAN BUS/HEAT | CAN BUS/HEAT |
| Size/mm | 136*83*18mm | 162*102*20mm | |||
| Wiring Output | Common Port | ||||
| Single Cell Voltage Range | 1-5V | ||||
| Voltage Acquistion Accuracy | ±5mV | ||||
| Over Charge Protection Voltage | 1.2-4.35V Adjustable | ||||
| Over Charge Relese Voltage | 1.2-4.35V Adjustable | ||||
| Over Current Detect Delay | 2-120S Adjustable | ||||
| Over Discharge Protection Voltage | 1.2-4.35V Adjustable | ||||
| Over Discharge Relese Voltage | 1.2-4.35V Adjustable | ||||
| Quantity of Temperature Detection | 4PCS | ||||
| Temp Protection | Yes | ||||
| Short Circuit protection | Yes | ||||
| Coulomb Counter | Yes | ||||
| App Function | Support for Android/IOS smartphone | ||||
