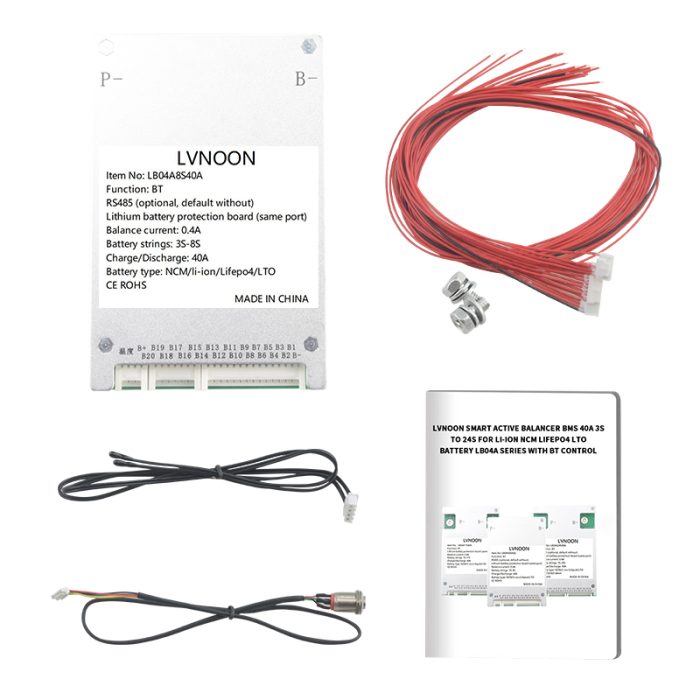

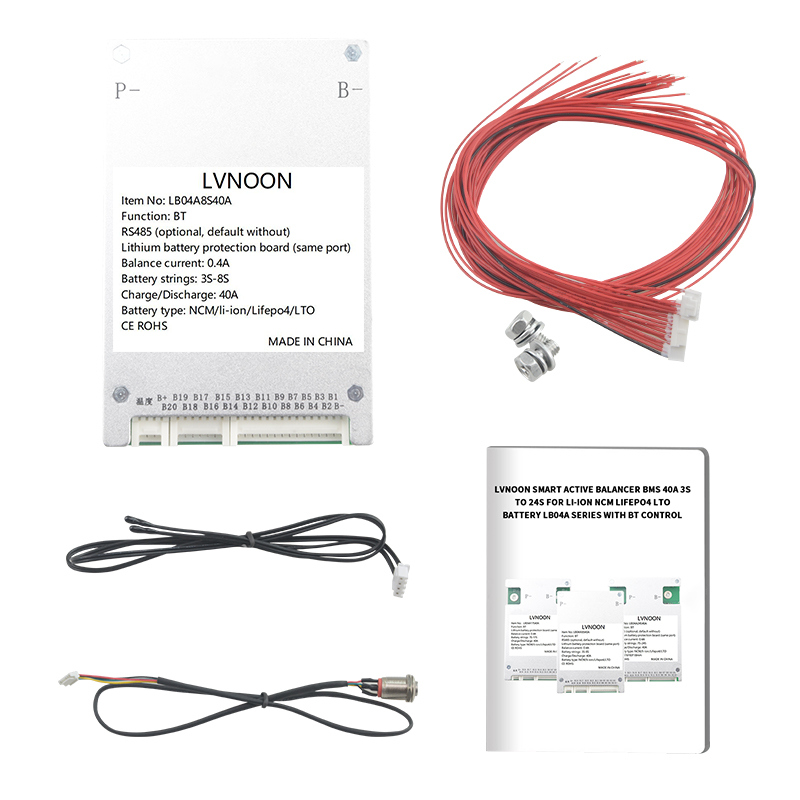

| LVNOON SMART ACTIVE BMS LB04A series Product Specifications |
| Technical Index | LB04A8S40A | LB04A17S40A | LB04A20S40A | LB04A24S40A | LB04A20S100A | LB04A24S100A |
| | | | | | | |
| Number of Battery Strings (Lifepo4) | 4S-8S | 8S-17S | 8S-20S | 8S-24S | 8S-20S | 8S-24S |
| Number of Battery Strings (LTO) | 6S-8S | 12S-17S | 12S-20S | 12S-24S | 12S-20S | 12S-24S |
| Balance Method | | Active Balance(Full State On) | | | |
| Balance Current | 0.4A | 0.4A | 0.4A | 0.4A | 0.4A | 0.4A |
| Conductive Resistance in Main Circuit | 2.8mΩ | 2.8mΩ | 2.8mΩ | 2.8mΩ | | |
| Continuous Discharge Current | 40A | 40A | 40A | 40A | 100A | 100A |
| Continuous Charge Current | 40A | 40A | 40A | 40A | 100A | 100A |
| Maximum Discharge Current (MAX 2 min) | 60A | 60A | 60A | 60A | 1500A | 1500A |
| Over Charge Protection Current (Adjustable) | 10-40A | 10-40A | 10-40A | 10-40A | 10-100A | 10-100A |
| Other interfaces (Default) | RS485 | RS485 | RS485 | RS485 | RS485 | RS485 |
| Other interfaces (need customized) | CANBUS/HEAT | CANBUS/HEAT | CANBUS/HEAT | CANBUS/HEAT | CANBUS/HEAT | CANBUS/HEAT |
| Size/mm | 110*73*18 | 110*73*18 | 116*83*18 | | |
| Wiring Output | | Common Port | | | | |
| Single Cell Voltage Range | | 1-5V | | | | |
| Voltage Acquistion Accuracy | | ±5mV | | | | |
| Over Charge Protection Voltage | | 1.2-4.35V Adjustable | | | |
| Over Charge Relese Voltage | | 1.2-4.35V Adjustable | | | |
| Over Current Detect Delay | | 2-120S Adjustable | | | |
| Over Discharge Protection Voltage | | 1.2-4.35V Adjustable | | | |
| Over Discharge Relese Voltage | | 1.2-4.35V Adjustable | | | |
| Quantity of Temperature Detection | | 2Pcs | | | | |
| Temp Protection | | Yes | | | | |
| Short Circuit protection | | Yes | | | | |
| Coulomb Counter | | Yes | | | | |
| App Function | Fit for Android/IOS smartphone | | | | |
